QT-05-L/G
QOTO
Product Description

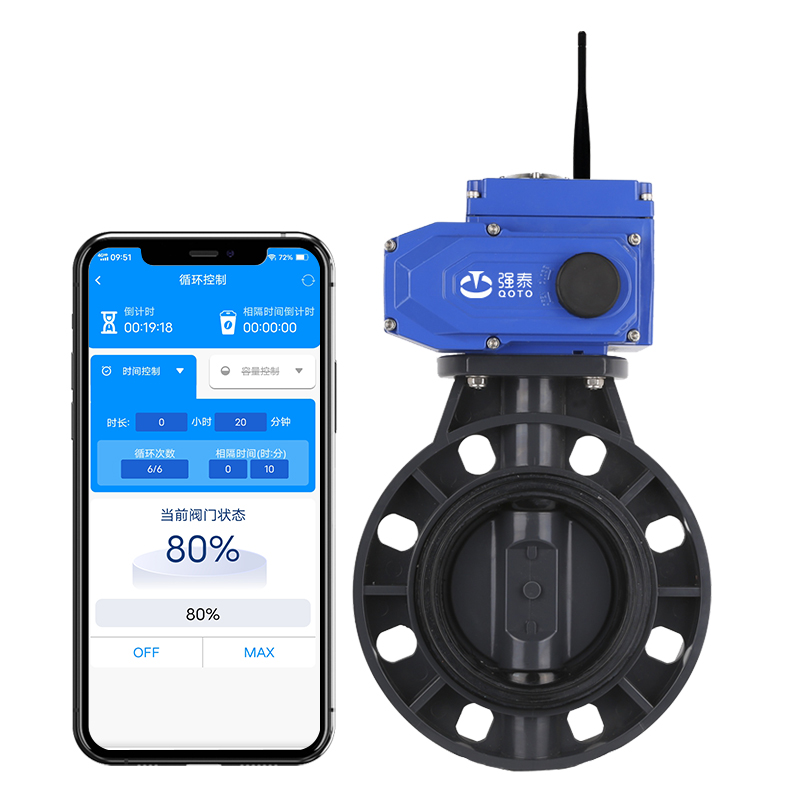

The IoT valve actuator is designed based on traditional PTAT electric actuator. We add IoT technology to the actuator and help devices get cellular internet, operated by App and web.
PTAT series electric actuator is with unique design, It can be used to control the 0 ° ~ 270 ° rotary valve or and other similar products, such as butterfly valve, ball valve, air valve, flapper valve, plug valve, louver valve, etc. It can be widely used in petroleum, chemical industry, water treatment, shipping, paper making, power station, heat supply, building automation, light industry and irrigation.With AC220v, DC24V or solar driving power supply, The maximum output torque is 4000 N・M.
Product Characteristics
1. Motorized valve
2. Partial aperture(programmable from 0~100% )
3. External flow meter pulse counting
4. Water pressure: 0~3000PSI
5. Cellular network connectivity(GSM, GPRS, CDMA, 2G / GSM, 3G, 4G / LTE, EDGE)
6. Control the irrigation task remotely via the internet or via SMS messaging
7. AC power supply/ solar power
Data sheet
product model | QT-10/15/20-G |
battery | 18650 lithium battery pack(wide temperature)， battery capacity: 5000mAh，11.1V |
solar panel | polysilicon 30V Current at Pmax:0.49A |
botton connector port | solar power charging port can support 24V 3A power supply |
flow meter | external flow meter |
max speed：10m/s | |
min speed：0.3m/s | |
working pressure：5kg/cm^2 | |
torque | 100 /150/200 N.m |
Max power | communication：3.8W |
block：25W | |
low power mode | sleep current：<10uA |
non low power mode | stand-by current：NB<48mA,4G<65mA,lora<26mA |
wireless communication specification | 4G | LTE Cat-1 |
LTE-FDD: B1/B3/B5/B8 | ||
LTE-TDD: B34/38/39/40/41 | ||
HTTP MQTT TCP/IP | ||
NB | Cat-NB B3/B5/B8 | |
HTTP MQTT TCP/UDP |
