PTAT series electric actuator is with unique design, It can be used to control the 0 ° ~ 270 ° rotary valve or and other similar products, such as butterfly valve, ball valve, air valve, flapper valve, plug valve, louver valve, etc. It can be widely used in petroleum, chemical industry, water treatment, shipping, paper making, power station, heat supply, building automation, light industry and other areas. .With ac 380v/220v/110v driving power supply, the actuator can make the valve movement to the required position by 4-20 ma current signal or 0 to 10 v DC voltage controlling signal. The maximum output torque is 4000 N·M.
| Quantity: | |
|---|---|

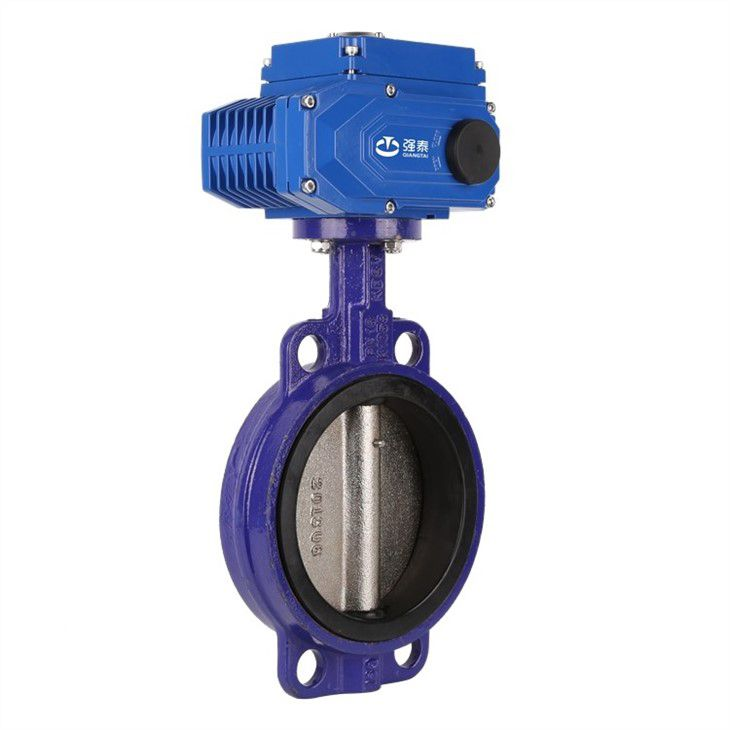

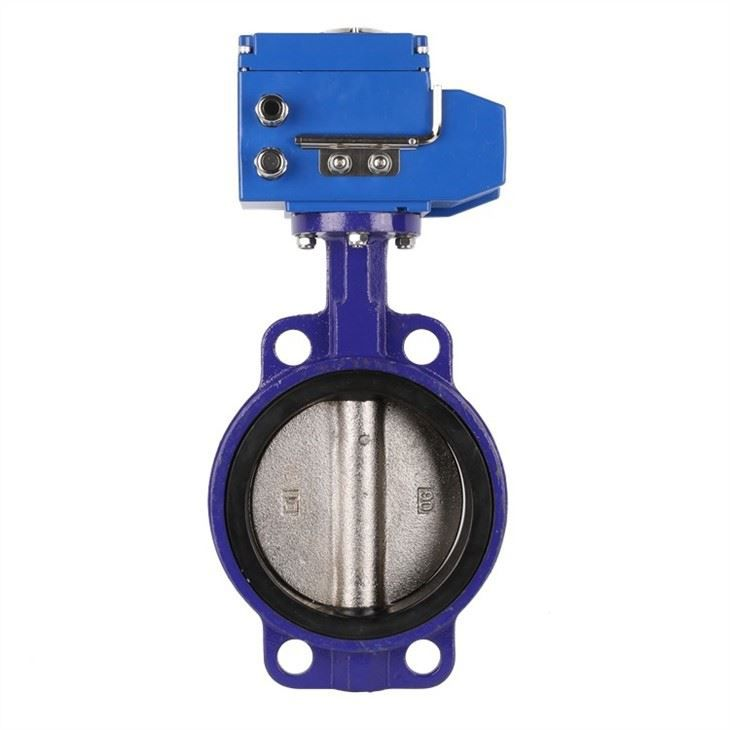

2000NM electric actuator for DN300 butterfly valve
Model Name：PTAT-100 PTAT-200 | PTAT-100 | PTAT-200 | |||||||
DC24V | AC110V | AC220V | AC380V | AC24V | AC110V | AC220V | AC380V | ||
Motor Power | 118W | 140W | |||||||
Rated Current | 1A | 8.5A | 1A | 0.48A | 9A | 2.2A | 1.1A | 0.6A | |
Output Torque | 1000NM | 2000NM | |||||||
Operating Time | 30S/50S | 90S | |||||||
Output Shaft | Square hole：27*27，Depth：32； Round hole：Φ32.65 Depth:42Max | ||||||||
Control Circuit | B-type/S-type/R-type/H-type/A-type/K-type/D-type/T-type/ | ||||||||
Operation Angle | 0~270° | ||||||||
Weight | 7.5kg | ||||||||
Dielectric Strength | 1500VAC/Minute | ||||||||
Insulation Resistance | 100MΩ/500VDC | ||||||||
Working Temperature | -25°C~60°C（Other temperature can be customized） | ||||||||
Installation Angle | 360° Any Angle | ||||||||
Housing | Aluminium Alloy Die-castings，IP67 water-proof grade，NEMA4and6 | ||||||||
Optional Function | Over torque Protection、Heat Dehumidifier | ||||||||
Ball Valve | 125 | 150 | |||||||
Butterfly Valve | 300-350 | 400-450 | |||||||
DN300 Butterfly water valve 300D073H-5K
1. 300D073H-5K-01 valve body WCB
2. 300D073H-5K-02 Disc material WCB
3. 300D073H-5K-03 seal ring LCr18NI9TI
4. 300D073H-5K-04 pressure plate WCB
5. 300D073H-5K-05 stem 2Cr13
6. 300D073H-5K-06 Yolk WCB
7. 300D073H-5K-07 gland bushing WCB
8. 300D073H-5K-08 packing flexible graphite
9. GB119-86 general cylindrical pin 35
10. GB70-85 hex head screw in cylindrical pin 35
11. GB901-88 Equal-length double - headed stud 35
12. GB41-86 hex nut 45
13. GB93-87 spring Gasket 65Mn
14. GB901-88 Equal-length double - headed stud 35
15. GB41-86 hex nut 45
16. GB95-85 flat Gasket 65Mn
Design Standard:GB/T12238-89
End connection: GB/T12238-89
Face to face: GB/T12238-89
GB/T12238-89:GB/T12238-89
